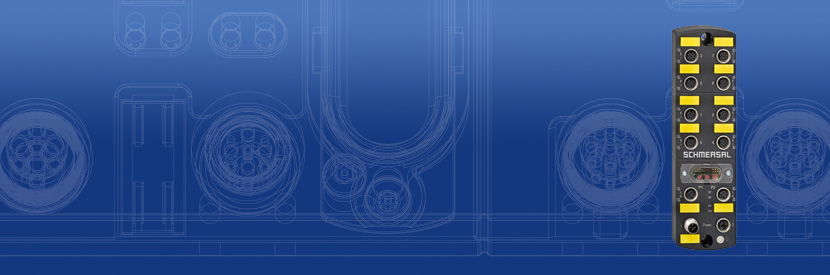

Safety field box SFB-IOP for I/O devices
Free interlinking of safety switchgear devices
Cost-effective and fail-safe installation
Integrated web Server for displaying Status and diagnostic data

You are here

Content

Simple installation solution for complex machines: safety field box with PROFINET/PROFIsafe field bus Interface

The Schmersal Group is presenting its new safety field box SFB-PN-IRT-8M12-IOP at SPS IPC Drives 2018 in Nuremberg. Set for launch onto the market in 2019, this safety field box for PROFINET/PROFIsafe systems is suitable for simple plug and play installation of up to eight safety devices.

Thanks to its universal device interface with an 8-pole M12 connector, it can be used to connect a wide variety of safety devices: electronic and electro-mechanical safety interlocks, switches, sensors, light curtains and operation panels. Safety devices by other manufacturers can also be easily connected, using an adapter, for example.

The safety signals from connected safety devices are forwarded to a safety controller for evaluation via the secure PROFINET/PROFIsafe field bus interface. PROFIsafe is the functionally safe extension to standard communication via PROFINET. PROFIsafe-based communication is protected against alteration, transmission errors, changes in the telegram sequence and similar. Parallel transmission of safety signals allows safety devices to be freely linked in the safety controller. Field box device connections can also be configured to link different devices, thus providing maximum flexibility in the conceptual design of safety solutions. What's more, all device connections also feature a self-resetting fuse element to protect lines. After eliminating an overcurrent in a connection, the fuse element resets itself after a brief cool-down period.

Advantages of the safety field box

"The safety field box is a simple, inexpensive installation solution which provides highly flexible, individually configurable safety solutions for complex machines and systems," states Udo Weber, Safety Technology Product Manager at Schmersal. "Moreover, additional transmission of all diagnosis signals from connected devices ensures optimum process transparency."
The advantages of the safety field box in brief: As a simple plug and play solution, it ensures rapid fitting and cost-efficient, fail-safe installation with little wiring.
